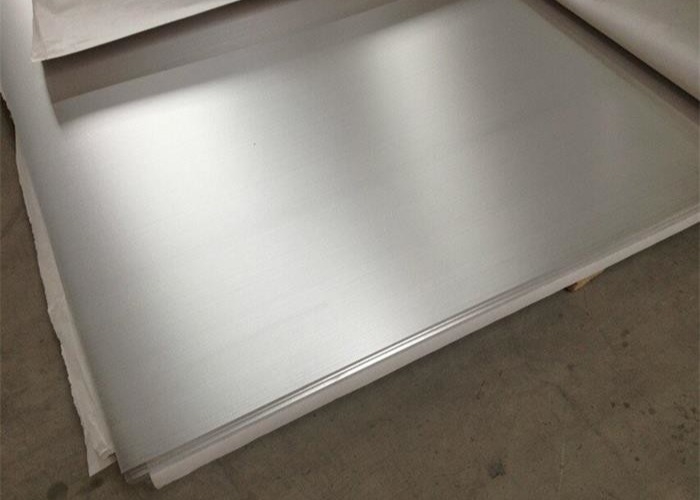

5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending

Place of Origin China
Brand Name Sylaith
Certification ISO 9001
Model Number 5754
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-14 days
Payment Terms L/C, T/T
Supply Ability 50000 Ton Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Industrial Aluminum Plate Grade 5754
Thickness 0.3mm-300mm Standard Size 1250*2500mm, 1220*2440mm, 1500*3000mm
Alloy Or Not Is Alloy Surface Treatment Coated
Temper O, H111, H112, H32, Etc Shape Flat Plate
High Light

high strength aluminum alloy sheet

,

aluminum alloy sheet bending

,

aluminum sheet marine grade

Leave a Message
Product Description

Marine Grade 5754 Aluminum Sheet High Strength Alloy Aluminum Plate For Finshing Industry

Product Description:

Aluminum 5754 is an aluminum alloy with magnesium as the primary alloying element, supplemented with small chromium and/or manganese additions. It has good formability when in the fully soft, annealed temper and can be work-hardened to fairy high strength levels. It is slightly stronger, but less ductile, than 5052 alloy. It is used in a multitude of engineering and automotive applications.

5754 aluminum shows great drawing characteristics and maintains high strength. It can be easily welded and anodized for great surface finishing. Because it is easy to form and process, this grade works well for car doors, paneling, flooring, and other parts.



Name Industrial Aluminum Plate
Grade 5754
Temper O, H111, H112, H32, etc
Thickness 0.3-300mm
Standard Size

1250*2500mm, 1220*2440mm, 1500*3000mm

Surface mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc


Chemical Composition:

Chemical Composition WT(%)
Silicon Iron Copper Magnesium Manganese Chromium Zinc Titanium Others Aluminum
0.4 0.4 0.12.6 2.6-3.6 0.5 0.3 0.2 0.15 0.15 Balance


Mechanical Properties:

Typical Mechanical Properties
Temper

Thickness

(mm)

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation

(%)

O/H111 >0.20~0.50 129~240 ≥80 ≥12
>0.50~1.50 ≥14
>1.50~3.00 ≥16
>3.00~6.00 ≥18
>6.00~12.50 ≥18
>12.50~100.00 ≥17


Product Details:
5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending 0



Application:



5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending 1
Certification:

5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending 2

Packaging & Shipping:
5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending 3
5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending 4

FAQ:

Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
