Alloy 3003 3004 3005 Aluminum Round Circle Lightweight 1.0mm X 350mm DC Traffic Signs
| Place of Origin | China |
|---|---|
| Brand Name | Sylaith |
| Certification | ISO 9001 |
| Model Number | 3000 Series |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Standard seaworthy package |
| Delivery Time | 7-14 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 Ton Per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Circle Plate | Grade | 3000 Series |
|---|---|---|---|
| Thickness | 1.0mm | Diameter | 350mm |
| Shape | Round Circle | Application | Road Signs |
| Surface | Mill Finish | Tolerance | ±1% |
| Highlight | 3005 aluminum round circle,aluminum round circle 1.0mm x 350mm,round aluminum circle |
||
Product Description

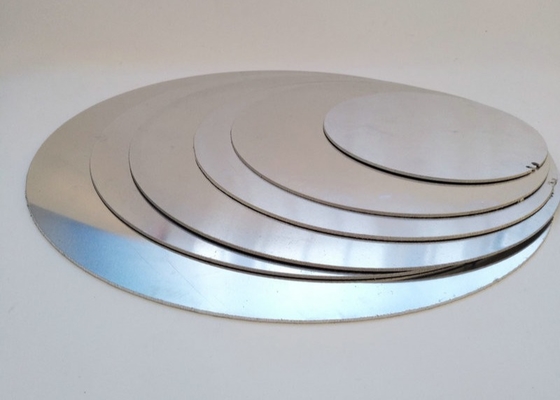

Traffic Signs Alloy 3003 3004 3005 Round Aluminum Circle Plate Lightweight 1.0mm x 350mm DC
Product Description:
Traffic signs or road signs are signs erected at the side of roads to provide information to road users. With traffic volumes increasing over the last eight decades, many countries have adopted pictorial signs or otherwise simplified and standardized their signs to facilitate international travel where language differences would create barriers, and in general to help enhance traffic safety.
Our Aluminium Circle Plate is currently being used to make:Regulatory signs, Warning signs, Guide signs, Street signs,Route marker signs,Expressway signs, Freeway signs, Welcome Signs, Informational signs, Recreation and cultural interest signs, Emergency management(civil defense) signs, Temporary traffic control (construction or work zone) signs, Schoolsigns, Railroad and light rail signs, Bicycle signs.
| Specification | Name: 3000 series aluminum sheet circle | |||||||||||
| Alloy: 3003, 3004, 3005, 3105 etc. | ||||||||||||
| Temper: O, H12, H22, H32, H14, H24, H26, H18 etc. | ||||||||||||
| Thickness: 0.25-200mm | ||||||||||||
| Width: Up to 1800mm | ||||||||||||
| Length: Up to 6000mm | ||||||||||||
| Surface treatment: mill finished, anodized, embossed, PVC coated | ||||||||||||
| Feature | Machinability: It is readily machined and is considered as having good machinability for the aluminum alloys,. | |||||||||||
| Forming: It is readily formed by either conventional cold working or hot working. | ||||||||||||
| Welding: It is readily accomplished by means of conventional welding methods. | ||||||||||||
| Heat Treatment: It is a non-heat treatable alloy. | ||||||||||||
| Forging: It may be hot forged in the range of 950 F to 500 F. | ||||||||||||
| Hot Working: The hot working range (as for forging) is 950 F to 500 F. In that range the alloy is easily hot worked. | ||||||||||||
| Cold Working: It is readily cold worked by all conventional methods. | ||||||||||||
| Annealing: Annealing, during or following cold working, is done at 775 F, allowing adequate time for thorough heating, followed by air cooling. | ||||||||||||
| Hardening: Hardens as a result of cold working only. | ||||||||||||
| Application | Chemical equipment, ductwork, and in general sheet metal work, cooking utensils, pressure vessels, builder's hardware, eyelet stock, ice cube trays, garage doors, awning slats, refrigerator panels, gas lines, gasoline tanks, heat exchangers, drawn and spun parts, and storage tanks etc. | |||||||||||
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Total Other | Al |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | --- | --- | 0.10 | --- | 0.15 | Remainder |
| 3004 | 030 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | --- | 0.25 | --- | 0.15 | Remainder |
| 3005 | 0.6 | 0.7 | 0.30 | 1.0-1.5 | 0.2-0.6 | 0.10 | 0.25 | 0.10 | 0.15 | Remainder |
| 3105 | 0.6 | 0.7 | 0.30 | 0.3-0.8 | 0.2-0.8 | 0.20 | 0.40 | 0.10 | 0.15 | Remainder |
Mechanical Property:
| Alloy | Temper | Thickness/mm | Tensile Strength, Rm/MPa | Yield Strength, Rp0.2/MPa(min) | Elongation/%, A50mm |
|
3003
|
O
|
>0.20--0.50 |
95--140
|
35
|
14 |
| > 0.50--1.50 | 18 | ||||
| >1.50--3.00 | 20 | ||||
| >3.00--6.00 | 23 | ||||
|
H12 or H22
|
>0.20--0.50 |
120--160
|
95
|
||
| > 0.50--1.50 | 4 | ||||
| >1.50--3.00 | 5 | ||||
| >3.00--6.00 | 6 | ||||
|
H14 or H24
|
>0.20--0.50 |
145--195
|
125
|
2 | |
| > 0.50--1.50 | 2 | ||||
| >1.50--3.00 | 3 | ||||
| >3.00--6.00 | 4 | ||||
|
H16 or H26
|
>0.20--0.50 |
170--210
|
150
|
1 | |
| > 0.50--1.50 | 2 | ||||
| >1.50--4.00 | 2 | ||||
|
H18 or H28
|
>0.20--0.50 |
190
|
1 | ||
| > 0.50--1.50 | 170 | 2 | |||
| >1.50--4.00 | 2 | ||||
|
3004
|
O
|
>0.20--0.50 |
155--200
|
60
|
14 |
| > 0.50--1.50 | 18 | ||||
| >1.50--3.00 | 20 | ||||
| >3.00--6.00 | 23 | ||||
|
H32 or H22
|
>0.20--0.50 |
190--240
|
145
|
4 | |
| > 0.50--1.50 | 5 | ||||
| >1.50--3.00 | 6 | ||||
| >3.00--6.00 | 7 | ||||
|
H34 or H24
|
>0.20--0.50 |
220--265
|
170
|
3 | |
| > 0.50--1.50 | 4 | ||||
| >1.50--3.00 | 4 | ||||
|
H36 or H26
|
>0.20--0.50 |
240--285
|
190
|
3 | |
| > 0.50--1.50 | 3 | ||||
| >1.50--3.00 | 3 | ||||
|
H38 or H28
|
>0.20--0.50 |
260
|
220
|
2 | |
| > 0.50--1.50 | 3 |
Product Details:
Applicaion:
Certification:
Packaging & Shipping:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
