Aluminum Steel Coil
Created with Pixso. Mill Finish Aluminum Coil 3003 3005 3105 6061-T6 For Mosit Conditions H14 H18 25-1600mm

Mill Finish Aluminum Coil 3003 3005 3105 6061-T6 For Mosit Conditions H14 H18 25-1600mm

Brand Name: Sylaith
Model Number: 3005 3105
MOQ: 1 Ton
Price: Negotiable
Delivery Time: 7-14 days
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Grade:
3005 3105
Standard:
ASTM AISI JIS DIN GB
Width:
25-1600mm
Tolerance:
±1%
Color:
Customer's Requirement
Shape:
Round Roll
Application:
Food Package
Advantage:
Anti Corrosion
Packaging Details:
Standard seaworthy package
Supply Ability:
50000 Ton Per Year
Highlight:

Sylaith aluminium 6061 coils

,

Sylaith 6061-t6 aluminum coils

,

Sylaith aluminum 3105 coils

Product Description

25-1600mm Width Coil Grade 3005 3105 Aluminum Steel Coil For Mosit Conditions H14 H18​



Product Description:

3005 aluminum alloy (Al-Mg) is approximately 20% higher strength than alloy 3003 with superior corrosion resistance. 3000 series aluminum coil is also called anti-rust aluminum. Manganese is added to 3005, contenting 1.0% -1.5%, so it has a better anti-rust function and is widely used. But the price is much higher than the 1000 series.3005 aluminum coil is often applied for the moist conditions such as air conditioner, refrigerator, bottom of cars, etc. It is also commonly used for building materials or color coated aluminum. It can be processed for some component parts which need good formability, high corrosion resistance and good weldability, or some applications require these properties must higher than 1 series aluminum, such as kitchenware, processing and storage devices of food and chemical products, tank or vessel which transports liquid products and various pressure artifacts, heat sink, make-up plate, photocopier roller, and marine usage.

3105 aluminum coil with 98% pure aluminum and slight alloy additions for strength. 0.3% of copper is added to 3105 aluminum coil, so the conductivity turns out to be 41%. For its contents and processing technologies, 3105 aluminum coil is light in weight and it has semi-smooth surface. Besides, it is not hardened by heat treatment.3105 aluminum coil has excellent forming properties, high corrosion resistance, good weldability and conductivity. Is widely used in kitchen utensils, food and chemical products processing and storage equipment, transport of liquid products, tank. to a variety of sheet metal processing,pressure vessels and piping, heat exchangers, rivets, welding, washing machines, cylinder, etc.



Product Aluminum Steel Coil
Grade 3005 3105
Production Process Cold Rolled, Hot Rolled
Width 25mm - 1600mm
Coil Weight 2-4 tons
MOQ 1 tons(According to specifications)
Package Export wooden pallets, craft paper, anti-blushing agent.
Delivery Time Future goods:15-20 Work days, Ready Stock:7-10 days
Quality of Material Totally free from defects like white rust, roll marks, adge damage, camber, dents, holes, break lines, scratches and free from coil set.
Kind Attention Specification can be customized as the customer's requirements.



Chemical Composition:



Elements Si Fe Cu Mn Mg Cr Zn   Ti Others Al
3005 0.6 0.7 0.3 1.0-1.5 0.2-0.6 0.1 0.25   0.1 0.15 Remain
3105 0.6 0.7 0.3 0.3.-0.80 0.20-0.80 0.2 0.4   0.1 0.15 Remain



Mechanical Properties:



Material Thickness (mm) Tensile Strength (KIS) Yield Strength (KIS) Elongation (KIS)
3005-O 0.2 - 3.0 20 8 22
3005-H14 3.0 - 6.0 29 28 4
3005-H18 3.0 - 6.0 37 36 2
Material Temper Tensile Strength (N/mm²) Yield Strength (N/mm²) Elongation on 50mm
        0.5 mm 0.8mm 1.3mm 2.6mm
3105 0 110-155 - 16 18 20 20
3105 H12 130-175 115 2 3 4 5
3105 H14 160-205 145 2 2 3 4
3105 H16 185-230 170 1 1 2 3
3105 H18 215 min 190 1 1 1 2





Product Details:

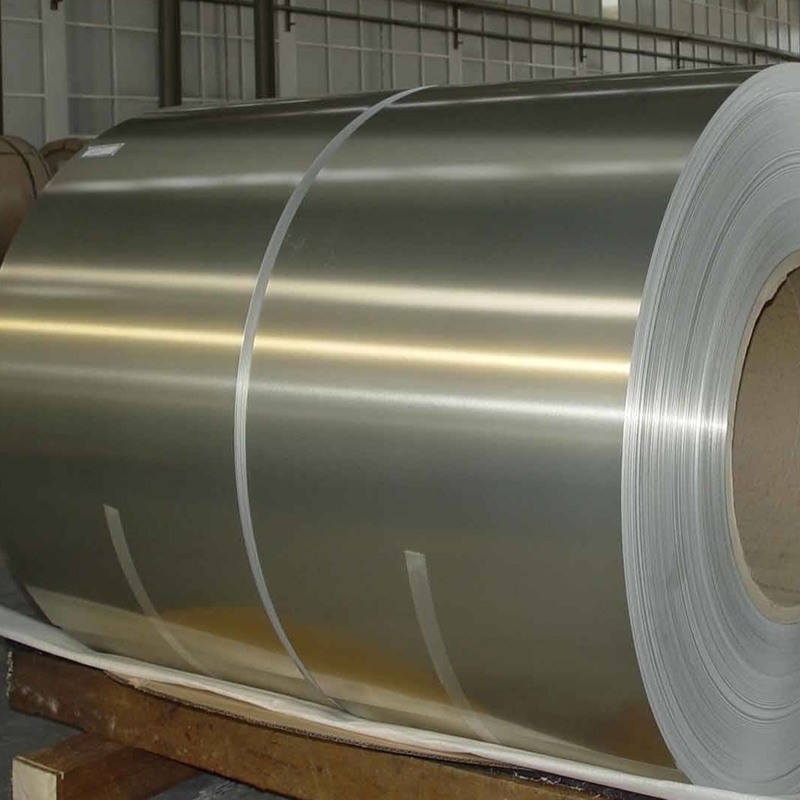

Mill Finish Aluminum Coil 3003 3005 3105 6061-T6 For Mosit Conditions H14 H18 25-1600mm 0



Certification:



Mill Finish Aluminum Coil 3003 3005 3105 6061-T6 For Mosit Conditions H14 H18 25-1600mm 1



Packaging & Shipping:



Mill Finish Aluminum Coil 3003 3005 3105 6061-T6 For Mosit Conditions H14 H18 25-1600mm 2

Mill Finish Aluminum Coil 3003 3005 3105 6061-T6 For Mosit Conditions H14 H18 25-1600mm 3



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
