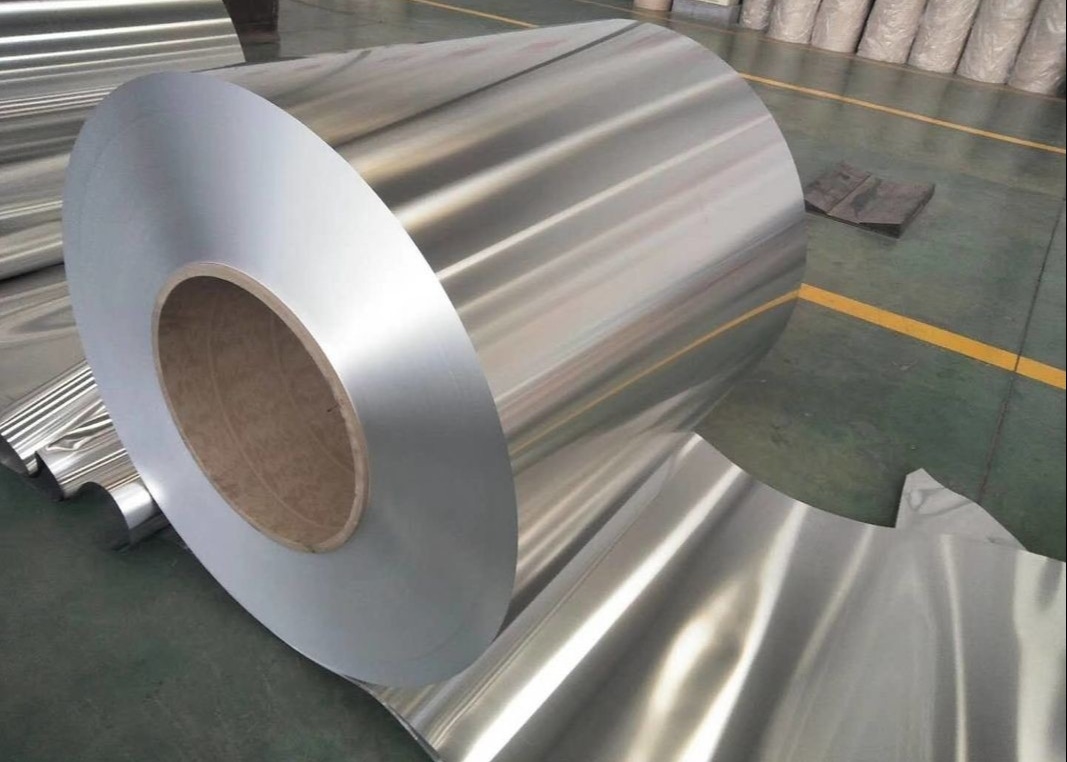

Temper O-H112 Aluminum Steel Coil 3003 Aluminum Slit Coil Replacement
| Place of Origin | China |
|---|---|
| Brand Name | Sylaith |
| Certification | ISO 9001 |
| Model Number | 3003 |
| Minimum Order Quantity | 1 Ton |
| Price | Negotiable |
| Packaging Details | Standard seaworthy package |
| Delivery Time | 7-14 days |
| Supply Ability | 50000 Ton Per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | 3003 | Standard | ASTM AISI JIS DIN GB |
|---|---|---|---|
| Width | 25-1600mm | Thickness | 0.1-3.0mm |
| Shape | Round Roll | Temper | O - H112 |
| Alloy Or Not | Is Alloy | Surface Treatment | Painted, Bare, Mill Finish Tread Plate |
| High Light | Temper O-H112 Aluminum Steel Coil,aluminum coil for roofing,aluminum coil replacement |
||
Product Description
Temper O-H112 Hot Rolled Cold Rolled Grade 3003 Aluminum Steel Coil Great Corriosion Resistance
Product Description:
3003 aluminum coil is the most widely used aluminum alloy. It is made up of aluminum, copper, iron, manganese, silicon and zinc. It is commonly used because it has great resistance to corrosion and is moderately strong. The 3003 aluminum coil is 20% stronger than 1100 grade alloys because it is fused with manganese.The machinability of the 3003 Aluminum is considered good for being an aluminum alloy. It is readily machined for the different applications. It can either be formed using conventional hot working or cold working. It’s also possible to use conventional welding methods to shape 3003 aluminum. It is sometimes welded to other aluminum alloys, like 6061, 5052 and 6062, which should have an AL 4043 filler rod.
| Product | Aluminum Steel Coil |
| Grade | 3003 |
| Production Process | Cold Rolled, Hot Rolled |
| Temper | O - H112 |
| Width | 25mm - 1600mm |
| Coil Weight | 2-4 tons |
| MOQ | 1 tons(According to specifications) |
| Package | Export wooden pallets, craft paper, anti-blushing agent. |
| Delivery Time | Future goods:15-20 Work days, Ready Stock:7-10 days |
| Quality of Material | Totally free from defects like white rust, roll marks, adge damage, camber, dents, holes, break lines, scratches and free from coil set. |
| Kind Attention | Specification can be customized as the customer's requirements. |
Chemical Composition:
| Alloy No. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | ||
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | 0 | 0 | 0.10 | 0 | 0.20 | REMAIN | ||
3003 ALUMINUM COIL PROPERTIES BY TEMPER:
| Products | Type | Temper | Thickness(mm) | Width(mm) | Length(mm) | |||||||
| 3003 Aluminum coil | Painted, Bare, Mill Finish Tread plate |
O H14 H16 H18 |
0.2-4.5 | 100-2600 | 500-16000 | |||||||
| 0.02-0.055 | 100-1600 | Coil | ||||||||||
| 0.8-7.0 | 100-2600 | 500-16000 | ||||||||||
Mechanical Properties:
| Material | Condition | Tensile Strength (ksi min) | Yield Strength (ksi min) | Elongation % in 2" 0.064 sheet | Min 90° Cold Bend Radius for 0.064" Thick |
| 3003-0 sheet 0.064" thick | 3003-0 | 14-19 | 5 | 25 | 0 |
| 3003-H12 sheet 0.064" thick | 3003-H12 | 17-23 | 12 | 6 | 0 |
| 3003-H14 sheet 0.064" thick | 3003-H14 | 20-26 | 17 | 5 | 0 |
| 3003-H16 sheet 0.064" thick | 3003-H16 | 24-30 | 21 | 4 | 1/2 - 1 1/2 T |
| 3003- sheet 0.064" thick | 3003-H18 | 27 min | 24 | 4 | 1 1/2 -3T |
Product Details:
Certification:
Packaging & Shipping:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
