.25" 1/4 1/8 6061 Sublimation Aluminum Sheet 1050 1060 5754 5005 6063 7075

  • .25" 1/4 1/8 6061 Sublimation Aluminum Sheet 1050 1060 5754 5005 6063 7075
Place of Origin China
Brand Name Sylaith
Certification ISO 9001
Model Number 1050 1060 3003 4032 5052 6061 7003
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-14 days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 1000/2000/3000/4000/5000/6000/7000 Width 10mm-2800mm
Processing Service Bending, Decoiling, Welding, Punching, Cutting Purposes Furniture/decorate/industry/construction
Temper O, H12, H22, H14, H16, H18, H24, H26, Etc Cutting Type Laser Cutting;Water-Jet Cutting;Flame Cutting
High Light

.25 6061 aluminum plate

,

1/4 6061 aluminum sheet

,

1/8 6061 aluminum sheet
Leave a Message
Product Description

Sublimation 6061 Aluminum Sheet 1050 1060 5754 3003 5005 5052 5083 6061 6063 7075 Alloy Aluminum Sheet



Product Description:



Aluminum plate specific cleaning steps are as follows:

1, the first to use amount of top water wash plate surface;
2, use the water diluted detergent soft cloth gently brush try board face;
3, with plenty of clean water to rinse the plate again, to wash away dirt;
4, check the board face, for no wash clean with detergent key;
5, board face, wash with water, until the detergent wash it all.
Note: don't wash hot plate (temperature more than 40 ° C), because the evaporation of water too fast is harmful to the surface of the lacquer that bake.



Name Sublimation Aluminum Sheet 1050 1060 5754 3003 5005 5052 5083 6061 6063 7075 T26 T6 Aluminum Sheet
Grade 1000,2000,3000,4000,5000,6000,7000
Model 1050,1060,2019,2024,3003,3004,4032,5052,5083,6061,6063,7003,7075
Technolog Hot Rolled or Cold Rolled
Certification SONCAP, ISO9001:2000
Thickness 0.3mm-100mm
Width Range 20mm-2200 mm
Length 20mm-8000mm or as your requirement.
Purposes Furniture/decorate/industry/construction
Sample Available
Temper O,H14,H16,H18,H22,H24,H26,H32,H34,H112 T4,T651 Etc.
Application Aluminum window, door, curtain wall, hand railing, normal aluminum profile, decorative and industrial aluminum profile
Container
Size		 20FT GP: 5898mm(Length)X2352mm(Width)X2393mm(High)
40FT GP: 12032mm(Length)X2352mm(Width)X2393mm(High)
40FT HC: 12032mm(Lengh)X2352mm(Width)X2698mm(High)
Kind Attention Specification can be customized as the customer's requirements.



Chemical Composition:



Alloy Si Fe Cu Mn Mg Cr Zn   Ti Other Al
Single Total
1050 0.25 0.4 0.05 0.05 0.05 — 0.05 V:0.05 0.03 0.03 — 99.5
1060 0.25 0.35 0.05 0.03 0.03 — 0.05 V:0.05 0.03 0.03 — 99.6
2024 0.5 0.5 3.8～4.9 0.30～0.9 1.2～1.8 0.1 0.25 — 0.15 0.05 0.15 Rem
3003 0.6 0.7 0.05～0.20 1.0～1.5 — — 0.1 — — 0.05 0.15 Rem
3004 0.3 0.7 0.25 1.0～1.5 0.8～1.3 — 0.25 — — 0.05 0.15 Rem
5052 0.25 0.4 0.1 0.1 2.2～2.8 0.15～0.35 0.1 — — 0.05 0.15 Rem
5083 0.4 0.4 0.1 0.40～1.0 4.0～4.9 0.05～0.25 0.25 — 0.15 0.05 0.15 Rem
6061 0.40～0.8 0.7 0.15～0.40 0.15 0.8～1.2 0.04～0.35 0.25 — 0.15 0.05 0.15 Rem
6063 0.20～0.6 0.35 0.1 0.1 0.45～0.9 0.1 0.1 — 0.1 0.05 0.15 Rem
7003 0.3 0.35 0.2 0.3 0.50～1.0 0.2 5.0～6.5 — 0.2 0.05 0.15 Rem
7075 0.4 0.5 1.2～2.0 0.3 2.1～2.9 0.18～0.28 5.1～6.1 — 0.2 0.05 0.15 Rem



Mechanical Property:



Mechanical Property
ALUMINUM
ALLOY		 Grade Normal Temper Temper Tensile Strength
N/mm²		 Yield Strength
N/mm²		 Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)		 2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)		 3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)		 5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)		 6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)		 7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150



Product Details:

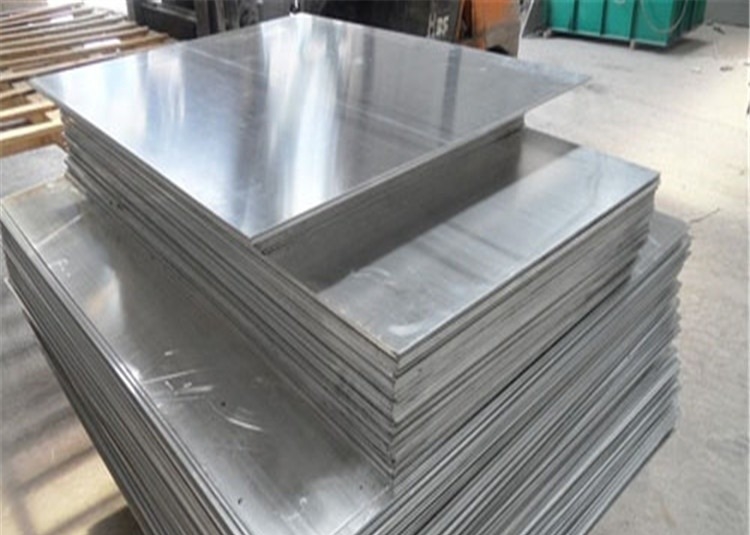

.25" 1/4 1/8 6061 Sublimation Aluminum Sheet 1050 1060 5754 5005 6063 7075 0



Certification:



.25" 1/4 1/8 6061 Sublimation Aluminum Sheet 1050 1060 5754 5005 6063 7075 1



Package:



.25" 1/4 1/8 6061 Sublimation Aluminum Sheet 1050 1060 5754 5005 6063 7075 2

.25" 1/4 1/8 6061 Sublimation Aluminum Sheet 1050 1060 5754 5005 6063 7075 3



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
