10 16 12 Gauge Bright Aluminum Diamond Plate Boat Trailer Fenders 1050 3004 3105 5754 7075

Place of Origin China
Brand Name Sylaith
Certification ISO 9001
Model Number 1050 1060 1100 3003 3004 3105 5052 5754 6061 7075
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-14 days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 1050 1060 1100 3003 3004 3105 5052 5754 6061 7075 Width 10mm-2800mm
Processing Service Bending, Decoiling, Welding, Punching, Cutting Temper O-H112
Surface Emboss,mirror Plane,oxidation Cutting Type Laser Cutting;Water-Jet Cutting;Flame Cutting
Packaging Standard Seaworthy Package Delivery Time 7-14 Days
High Light

10 gauge aluminum diamond plate

,

12 gauge aluminum diamond plate

,

16 gauge aluminum diamond plate

Leave a Message
Product Description

Alloy 1050 1060 1100 3003 3004 3105 5052 5754 6061 7075 Aluminium Diamond Plate For Floor



Product Description:

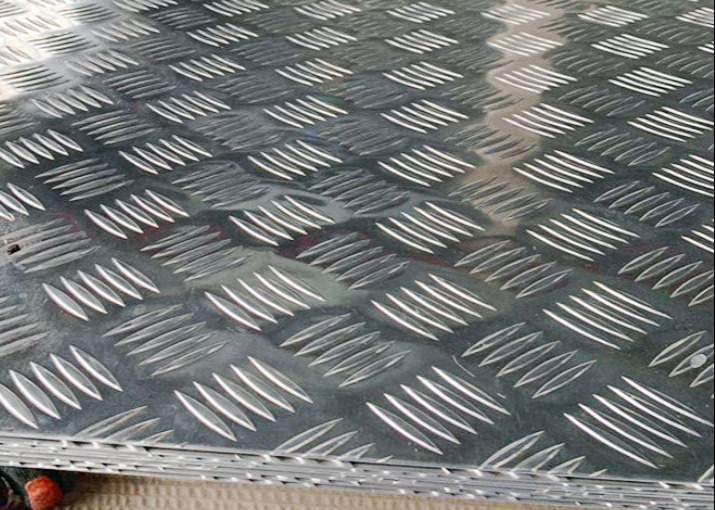

Aluminum diamond plate, sometimes called aluminum tread plate, aluminum floor plate, or aluminum checker plate, is available in 6061-T6 and 3003-H14 sizes. The 6061-T6 alloy can have a dull or shiny finish and is harder and more durable, and the 3003-H14 has shiny bright finish, and is softer and more formable. Aluminum tread plate is commonly seen on fire trucks and truck toolboxes.



Name 1050 1060 1100 3003 3004 3105 5052 5754 6061 7075 Aluminium Diamond Plate For Floor
Grade 1000,3000,5000,6000,7000
Model 1050 1060 1070 1100 3003 3004 3105 5052 5754 6061 7075
Technolog Hot Rolled or Cold Rolled
Certification SONCAP, ISO9001:2000
Thickness 0.7mm - 6.0mm
Width Range 500mm - 1600mm
Length Customized
Sample Available
Temper O,H14,H16,H18,H22,H24,H26,H32,H34,H112 T4,T651 Etc.
Application Refrigerator, air conditioner, car, platform, packing tube, screen frame, various hanging beam, table leg, handle, cable slot and cover, chair, etc.
Kind Attention Specification can be customized as the customer's requirements.



Chemical Composition:



Alloy Si Fe Cu Mn Mg Cr Zn   Ti Other Al
Single Total
1050 0.25 0.4 0.05 0.05 0.05 0.05 V:0.05 0.03 0.03 99.5
1060 0.25 0.35 0.05 0.03 0.03 0.05 V:0.05 0.03 0.03 99.6
1070 0.2 0.25 0.04 0.03 0.03 0.04 V:0.05 0.03 0.03 99.7
1100 Si+Fe:0.95 0.05~0.40 0.05 0.1 0.05 0.15 99
3003 0.6 0.7 0.05~0.20 1.0~1.5 0.1 0.05 0.15 Rem
3004 0.3 0.7 0.25 1.0~1.5 0.8~1.3 0.25 0.05 0.15 Rem
3105 0.6 0.7 0.3 0.30~0.8 0.20~0.8 0.2 0.4 0.1 0.05 0.15 Rem
5052 0.25 0.4 0.1 0.1 2.2~2.8 0.15~0.35 0.1 0.05 0.15 Rem
5754 0.4 0.4 0.1 0.5 2.6~3.6 0.3 0.2 Mn+Cr:0.10~0.6 0.15 0.05 0.15 Rem
6061 0.40~0.8 0.7 0.15~0.40 0.15 0.8~1.2 0.04~0.35 0.25 0.15 0.05 0.15 Rem
7075 0.4 0.5 1.2~2.0 0.3 2.1~2.9 0.18~0.28 5.1~6.1 0.2 0.05 0.15 Rem



Division Description Application Feature
1000 SERIES 1050 1060 1070 1100 1235representative series aluminum
plate is also known as pure aluminum, in the series in
1xxx series belongs to all the alumina quantity of a
maximum number of series. Purity can achieve 99.00% above.
Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength
3000 SERIES 3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone 20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable
5000 SERIES 5xxx series representatives 5052 5005 5083,5754. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components Excellent corrosion resistance andweld ability together with Easy to process and weld and superior hardness &heatproof Can be anodized for increased corrosion resistance
6000 SERIES 6xxx series represents 6061 mainly contain magnesium and silicon of two elements, so focused on the 4000 series and the advantages of the 5000 series 6061 is a cold treatment aluminum forging products, apply to fight against corrosion, oxidizing demanding applications. IT equipment & facility, Mould material, motor material, automatic line, machine & plant etc Easy to process , good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment
7000 SERIES 7000 aluminum alloy is another common alloy, wide variety. It contains zinc and magnesium. The best strength in the common aluminum alloy is 7075 alloy, but it can't be welded, and its corrosion resistance is rather poor, many manufacturing parts with CNC cutting is 7075 alloy. The aerospace industry & High strength accessories 7000 series is high tensile to process with special alloy



Product Details:

10 16 12 Gauge Bright Aluminum Diamond Plate Boat Trailer Fenders 1050 3004 3105 5754 7075 0



10 16 12 Gauge Bright Aluminum Diamond Plate Boat Trailer Fenders 1050 3004 3105 5754 7075 1



Certification:



10 16 12 Gauge Bright Aluminum Diamond Plate Boat Trailer Fenders 1050 3004 3105 5754 7075 2



Packaging & Shipping :



10 16 12 Gauge Bright Aluminum Diamond Plate Boat Trailer Fenders 1050 3004 3105 5754 7075 3

10 16 12 Gauge Bright Aluminum Diamond Plate Boat Trailer Fenders 1050 3004 3105 5754 7075 4



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
