2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted

  • 2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted
Place of Origin China
Brand Name Sylaith
Certification ISO 9001
Model Number 1050 1050A 3003 5052 5083 6061 6063 7075
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-14 days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 1000 Series Width 10mm-2800mm
Processing Service Bending, Decoiling, Welding, Punching, Cutting Surface Emboss,mirror Plane,oxidation
Cutting Type Laser Cutting;Water-Jet Cutting;Flame Cutting Service OEM, Customized Processing Service, Customized Fab
Packaging Standard Seaworthy Package Delivery Time 7-14 Days
High Light

Sylaith 2219 aluminium plates

,

embossed aluminum plates Sylaith

,

Sylaith embossed aluminum plates
Leave a Message
Product Description

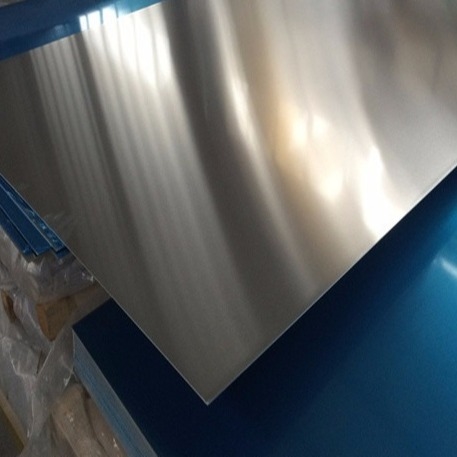

2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted



Product Description:



1050 1060 1070 1100 1235 representative series aluminum plate is also known as pure aluminum, in the series in 1000 series belongs to all the alumina quantity of a maximum number of series. Purity can achieve 99.00% above.Easy to process and weld, resistant to rust, high, conductibility of electricity and heat,low strength.



Name 2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted
Grade 1000,2000,3000,5000,6000,7000,8000
Model 1050 1050A 1060 1070 1100 3003 5052 5083  6061 6063 6082 7075 7A05 7A52
Technolog Hot Rolled or Cold Rolled
Certification SONCAP, ISO9001:2000
Thickness 0.2mm-300mm
Width Range 10mm-2800mm
Length Customized
Sample Available
Application 1)Further making utensil
2)Solar reflective film
3)The appearance of the building
4)Interior decorating; ceilings, walls,etc
5)Furniture cabinets
6)Elevator decoraction
7)Signs, nameplate,bags making
8)Decorated inside and outside the car
9)Household appliances:refrigerators, microwave ovens, audio equipment,etc



Chemical Composition:



Alloy Si Fe Cu Mn Mg Cr Ni Zn   Ti Zr Other Al
Single Total
1050 0.25 0.4 0.05 0.05 0.05 — — 0.05 V:0.05 0.03   0.03 — 99.5
1050A 0.25 0.4 0.05 0.05 0.05 — — 0.07 — 0.05   0.03 — 99.5
1060 0.25 0.35 0.05 0.03 0.03 — — 0.05 V:0.05 0.03   0.03 — 99.6
1070 0.2 0.25 0.04 0.03 0.03 — — 0.04 V:0.05 0.03   0.03 — 99.7
1100 Si+Fe:0.95 0.05～0.40 0.05 — — — 0.1 ① —   0.05 0.15 99
3003 0.6 0.7 0.05～0.20 1.0～1.5 — — — 0.1 — — — 0.05 0.15 Remainder
5052 0.25 0.4 0.1 0.1 2.2～2.8 0.15～0.35 — 0.1 — — — 0.05 0.15 Remainder
5083 0.4 0.4 0.1 0.40～1.0 4.0～4.9 0.05～0.25 — 0.25 — 0.15 — 0.05 0.15 Remainder
6061 0.40～0.8 0.7 0.15～0.40 0.15 0.8～1.2 0.04～0.35 — 0.25 — 0.15 — 0.05 0.15 Remainder
6063 0.20～0.6 0.35 0.1 0.1 0.45～0.9 0.1 — 0.1 — 0.1 — 0.05 0.15 Remainder
6082 0.7～1.3 0.5 0.1 0.40～1.0 0.6～1.2 0.25 — 0.2 — 0.1 — 0.05 0.15 Remainder
7075 0.4 0.5 1.2～2.0 0.3 2.1～2.9 0.18～0.28 — 5.1～6.1   0.2 — 0.05 0.15 Remainder
7A05 0.25 0.25 0.2 0.15～0.40 1.1～1.7 0.05～0.15 — 4.4～5.0 — 0.02～0.06 0.10～0.25 0.05 0.15 Remainder
7A52 0.25 0.3 0.05～0.20 0.20～0.50 2.0～2.8 0.15～0.25 — 4.0～4.8 — 0.05～0.18 0.05～0.15 0.05 0.15 Remainder





Division Description Application Feature
1000 SERIES 1050 1060 1070 1100 1235representative series aluminum
plate is also known as pure aluminum, in the series in
1xxx series belongs to all the alumina quantity of a
maximum number of series. Purity can achieve 99.00% above.		 Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength
3000 SERIES 3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone 20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable
5000 SERIES 5xxx series representatives 5052 5005 5083,5754. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components Excellent corrosion resistance andweld ability together with Easy to process and weld and superior hardness &heatproof Can be anodized for increased corrosion resistance
6000 SERIES 6xxx series represents 6061 mainly contain magnesium and silicon of two elements, so focused on the 4000 series and the advantages of the 5000 series 6061 is a cold treatment aluminum forging products, apply to fight against corrosion, oxidizing demanding applications. IT equipment & facility, Mould material, motor material, automatic line, machine & plant etc Easy to process , good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment
7000 SERIES 7000 aluminum alloy is another common alloy, wide variety. It contains zinc and magnesium. The best strength in the common aluminum alloy is 7075 alloy, but it can't be welded, and its corrosion resistance is rather poor, many manufacturing parts with CNC cutting is 7075 alloy. The aerospace industry & High strength accessories 7000 series is high tensile to process with special alloy



Product Details:

2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted 0



Certification:



2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted 1



Packaging & Shipping:



2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted 2

2219 3003 Embossed Aluminum Tread Plate Roofing Sheet Profile Galvanized Prepainted 3



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
