Solid Aluminum Bar
Created with Pixso. AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction

AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction

Brand Name: Sylaith
Model Number: 1000/3000/5000/6000/8000 Series
MOQ: 1 Ton
Price: Negotiable
Delivery Time: 7-14 days
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Grade:
1000/3000/5000/6000/8000 Series
Standard:
ASTM AISI JIS DIN GB
Surface Treatment:
Mill Finish Polished,Anodizing
Length:
Buyer's Requirement
Diameter:
2-800mm
Application:
Industrial/Machinery, Auto Part
Packaging Details:
Standard seaworthy package
Supply Ability:
50000 Ton Per Year
Highlight:

Sylaith Extruded Solid Aluminum Round Bars

,

Sylaith AISI 1050 Solid Aluminum Bars

,

Sylaith T6 T651 Solid Aluminum Bars

Product Description

Customized Size AISI ASTM 1050 1060 T6 T651 Extruded Aluminum Round Bar For Construction



Product Description:



3000 series aluminum rods are made of manganese as the main component. Content between 1.0-1.5, is a series of good rust prevention function. 5000 SERIES ALUMINUM BAR belongs TO THE common alloy ALUMINUM bar series, the main characteristics are low density, high tensile strength, high elongation. The weight of aluminum-magnesium alloy is lower than that of other series under the same area, and it is widely used in conventional industry.



Item Solid Aluminum Bar
Standard GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material 1050 1060 1100 3003 5052 5083 6061
Size Length 2000mm,2440mm,6000mm,or as required.
Quality control Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc


Chemical Composition:



Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Al
Single Total
1060 0.25 0.35 0.05 0.03 0.03 0.05 0.03 0.03 99.6
1050 0.25 0.4 0.05 0.05 0.05 0.05 0.03 0.03 99.5
1100 Si+Fe:0.95 0.05~0.40 0.05 0.1 0.05 0.15 99
1200 Si+Fe:1.00 0.05 0.05   0.1 0.05 0.05 0.15 99
3003 0.6 0.7 0.050.20 1.01.5 0.1 0.05 0.15 Rem
5052 0.25 0.4 0.1 0.1 2.22.8 0.150.35 0.1 0.05 0.15 Rem
5083 0.4 0.4 0.1 0.401.0 4.04.9 0.050.25 0.25 0.15 0.05 0.15 Rem
6061 0.400.8 0.7 0.150.40 0.15 0.81.2 0.040.35 0.25 0.15 0.05 0.15 Rem



Mechanical Property:



ALUMINUM
ALLOY
Grade Normal
Temper
Temper Tensile Strength
N/mm²
Yield Strength
N/mm²
Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)
2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)
3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)
5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)
6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)
7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150


Product Details:

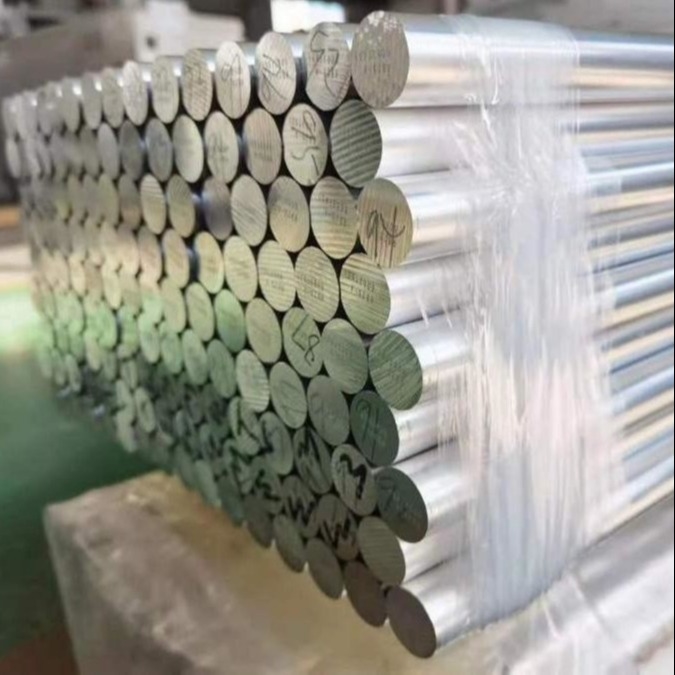

AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction 0

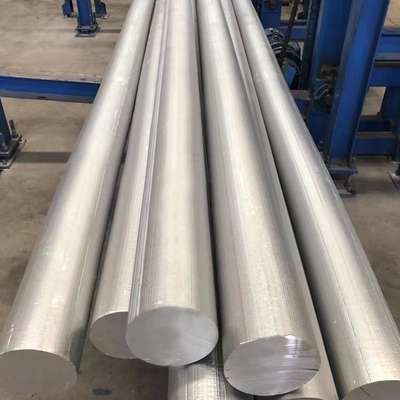

AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction 1



Product Application:



AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction 2



Certification:



AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction 3





Packaging & Shipping:





AISI ASTM Extruded Aluminum Round Bar 1050 1060 T6 T651 For Construction 4



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
