Solid Aluminum Bar
Created with Pixso. 1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction

1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction

Brand Name: Sylaith
Model Number: 1000 Series
MOQ: 1 Ton
Price: Negotiable
Delivery Time: 7-14 days
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Grade:
1000 Series
Standard:
ASTM AISI JIS DIN GB
Surface Treatment:
Mill Finish Polished
Length:
Buyer's Requirement
PRICE TERM:
CIF CFR FOB EXW
Diameter:
6mm - 350mm
Packaging Details:
Standard seaworthy package
Supply Ability:
50000 Ton Per Year
Highlight:

1100 aluminum bar

,

1x1 aluminum bar

,

1x2 aluminum bar

Product Description

ASTM JIS Customized Size Solid Aluminium Bar 1050 1060 1100 For Construction



Product Description:



1000 series aluminum rod represents 1050, 1060, 1100 series. In all series 1000 series belongs to a series with the most aluminum content. The purity can reach above 99.00%. Because there are no other technical elements, the production process is relatively simple.



Item Solid Aluminum Bar
Standard GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material 1100 1200 1050 1060 1070 1235 1350
Size Length 2000mm,2440mm,6000mm,or as required.
Quality control Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc


Chemical Composition:



Alloy Chemical Composition (mass fraction)(%)
Si Fe Cu Mn Mg Cr Ni Zn   Ti 其他 Al(铝)
(硅) (铁) (铜) (锰) (镁) (铬) (镍) (锌) (钛) 单个 合计
1A99 0.003 0.003 0.005 0.002 99.99
1A97 0.015 0.015 0.005 0.005 99.97
1A95 0.03 0.03 0.01 0.005 99.95
1A93 0.04 0.04 0.01 0.007 99.93
1A90 0.06 0.06 0.01 0.01 99.9
1A85 0.08 0.1 0.01 0.01 99.85
1A80 0.15 0.15 0.03 0.02 0.02 0.03 Ca:0.03;V:0.05 0.03 0.02 99.8
1A80A 0.15 0.15 0.03 0.02 0.02 0.06 Ca:0.03 0.02 0.02 99.8
1070 0.2 0.25 0.04 0.03 0.03 0.04 V:0.05 0.03 0.03 99.7
1070A 0.2 0.25 0.03 0.03 0.03 0.07 0.03 0.03 99.7
1370 0.1 0.25 0.02 0.01 0.02 0.01 0.04 Ca:0.03 ;B:0.02 0.02 0.1 99.7
V+Ti:0.02
1060 0.25 0.35 0.05 0.03 0.03 0.05 V:0.05 0.03 0.03 99.6
1050 0.25 0.4 0.05 0.05 0.05 0.05 V:0.05 0.03 0.03 99.5
1050A 0.25 0.4 0.05 0.05 0.05 0.07 0.05 0.03 99.5
1A50 0.3 0.3 0.01 0.05 0.05 0.03 Fe+Si:0.45 0.03 99.5
1350 0.1 0.4 0.05 0.01 0.01 0.05 Ca:0.03;B:0.05 0.03 0.1 99.5
V+Ti:0.02
1145 Si+Fe:0.55 0.05 0.05 0.05   V:0.05 0.03 0.03 99.45
1035 0.35 0.6 0.1 0.05 0.05 0.1 V:0.05 0.03 0.03 99.35
1A30 0.10~0.20 0.15~0.30 0.05 0.01 0.01 0.01 0.02 0.02 0.03 99.3
1100 Si+Fe:0.95 0.05~0.40 0.05 0.1 0.05 0.15 99
1200 Si+Fe:1.00 0.05 0.05   0.1 0.05 0.05 0.15 99
1235 Si+Fe:0.65 0.05 0.05 0.05 0.1 V:0.05 0.06 0.03 99.35





Mechanical Property:



ALUMINUM
ALLOY
Grade Normal
Temper
Temper Tensile Strength
N/mm²
Yield Strength
N/mm²
Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)
2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)
3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)
5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)
6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)
7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150


Product Details:

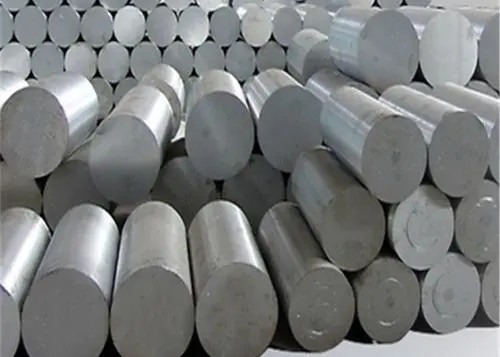

1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction 0



Product Application:



1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction 1



Certification:



1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction 2





Packaging & Shipping:



1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction 3

1x1 1x2 2 X 3 Solid Aluminum Bar 1050 1060 1100 ASTM JIS For Construction 4



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
