6101 6063 Thin Aluminum Window Frame Extrusion Profiles Section

Place of Origin China
Brand Name Sylaith
Certification ISO 9001
Model Number 6000 series
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-14 days
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Aluminum Profile Alloy Alloy
Specification Customized Availble Temper T3-T8
Surface Treatment Powder Coating, Anodizing, Electrophoresis Surface Finishing Powder Spraying
Certification CE, ISO, BV HS Code 7604299000
High Light

aluminum window frame section


aluminum window frame profile


aluminum window extrusion profiles

Leave a Message
Product Description

6101 6063 Aluminum Profile in Building Materials Window and Door Aluminun Construction Decoration


Product Description:


Corrosion resistance: The density of aluminum profiles is only 2.7g/cm3, about one-third of the density of steel, copper or brass (7.83g/ cm3, 8.93g/ cm3). Aluminum exhibits excellent corrosion resistance in most environmental conditions, including air, water (or brine), petrochemical, and many chemical systems. Electrical conductivity: Aluminum profiles are often chosen for their excellent electrical conductivity. The electrical conductivity of aluminum is nearly half that of copper, weight equal. Thermal conductivity: The thermal conductivity of aluminum alloys is about 50-60% of that of copper, which is good for heat exchangers, evaporators, heating appliances, cooking appliances, as well as cylinder heads and radiators for automobiles. Non-ferromagnetic: Aluminum profiles are non-ferromagnetic, an important property for the electrical and electronics industries. Aluminum profiles are non-flammable, which is important for applications involving handling or contact with flammable and explosive materials. Machinability: the machinability of aluminum profile is excellent. The machining characteristics of various deformed and cast aluminum alloys, as well as the various states in which these alloys are produced, vary considerably, requiring special machine tools or techniques. Formability: Specific tensile strength, yield strength, ductility, and corresponding rate of work hardening govern the variation in allowable deformation. Recoverability: Aluminum is extremely recyclable and the properties of recycled aluminum are almost indistinguishable from those of primary aluminum.



6101 6063 Aluminum Profile in Building Materials Window and Door Aluminun Construction Decoration

Material 6000 series
Temper T3-T8
Size/Thickness General aluminum profiles thickness from 0.7-4.0mm, length from 3m-6.4m or customized availble; Anodize protection
Thickness from 8-18um, powder coating from 40-100um.
Shape Customized, rectangual, round, square
Application Windows and doors and so on
Suface treatment Powder Coating, Anodizing, Electrophoresis
Colors Anodize, powdering coating and customized availble
MOQ 300 kgs for each item
Packing Details Packing with plastic protective film inside; Plastic film or craft paper outside
Delivery time Developing and sample testing: 7-14 days; 2. Production completed: 14-21days after sample is comfirmed by customers
Payment T/T, L/C
Cetificate and Standard BV, ISO, SGS

Chemical Composition:


Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Al
Single Total
6A02 0.50~1.2 0.5 0.20~0.6 或Cr 0.45~0.9 0.05 余量 LD2 99.6
0.15~0.35 99.7
6B02 0.7~1.1 0.4 0.10~0.40 0.10~0.30 0.40~0.8 0.05 余量 LD2-1 Rem
6A51 0.50~0.7 0.5 0.15~0.35 0.45~0.6 Sn:0.15~0.35 0.05 余量 651 Rem
6101 0.30~0.7 0.5 0.1 0.03 0.35~0.8 0.03 B:0.06 0.03 余量 Rem
6101A 0.30~0.7 0.4 0.05 0.40~0.9 0.03 余量 Rem
6005 0.6~0.9 0.35 0.1 0.1 0.40~0.6 0.1 0.05 余量 Rem
6005A 0.50~0.9 0.35 0.3 0.5 0.40~0.7 0.3 Mn+Cr:0.12~0.50 0.05 余量 AlSiMg Rem
6351 0.7~1.3 0.5 0.1 0.40~0.8 0.40~0.8 0.05 余量 Rem
6060 0.30~0.6 0.10~0.30 0.1 0.1 0.35~0.6 0.05 0.05 余量 AlMgSI
6061 0.40~0.8 0.7 0.15~0.40 0.15 0.8~1.2 0.04~0.35 0.05 余量 LD30 Rem
6063 0.20~0.6 0.35 0.1 0.1 0.45~0.9 0.1 0.05 余量 LD31 Rem
6063A 0.30~0.6 0.15~0.35 0.1 0.15 0.6~0.9 0.05 0.05 余量 AlMg0.7Si Rem
6070 1.0~1.7 0.5 0.15~0.40 0.40~1.0 0.50~1.2 0.1 0.05 余量 LD2-2 Rem
6181 0.8~1.2 0.45 0.1 0.156 0.6~1.0 0.1 0.05 余量 Rem
6082 0.7~1.3 0.5 0.1 0.40~1.0 0.6~1.2 0.25 0.05 余量 AlSiMgMn Rem


Product Details:

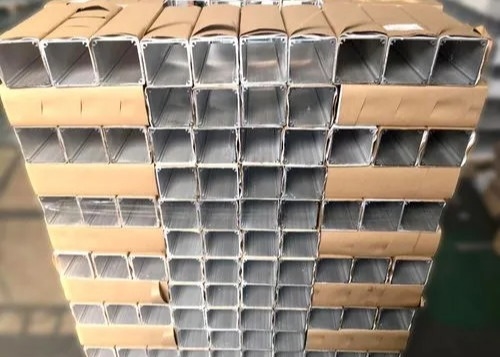

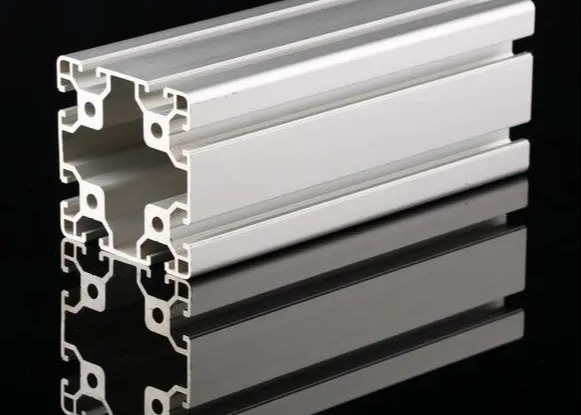

6101 6063 Thin Aluminum Window Frame Extrusion Profiles Section 0




6101 6063 Thin Aluminum Window Frame Extrusion Profiles Section 1




6101 6063 Thin Aluminum Window Frame Extrusion Profiles Section 2

6101 6063 Thin Aluminum Window Frame Extrusion Profiles Section 3
