Metric Solid Aluminum Bar Alloy 3003 3A21 Hot Forged Casting Extruded Alu 6063 Bar

Place of Origin China
Brand Name Sylaith
Certification ISO 9001
Model Number 3000 Series
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-14 days
Supply Ability 50000 Ton Per Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 3000 Series Standard ASTM AISI JIS DIN GB
Surface Treatment Mill Finish Al (Min) 90-98.8%
Hardness 110 Length 100mm - 6000mm
Temper T3 - T8 Processing Service Cutting
Diameter 2mm-320mm Tolerance ±1%
High Light

metric aluminum bar

,

alu 6063 bar

,

powder coated aluminium bar

Leave a Message
Product Description

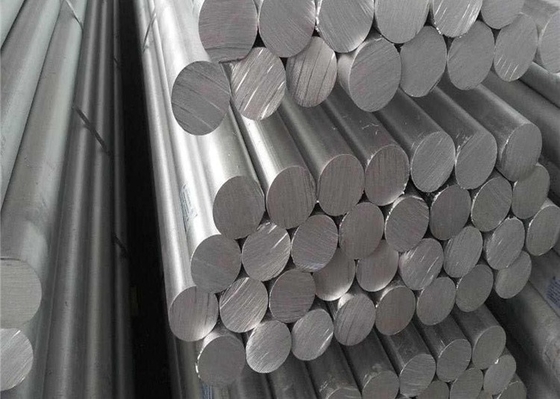

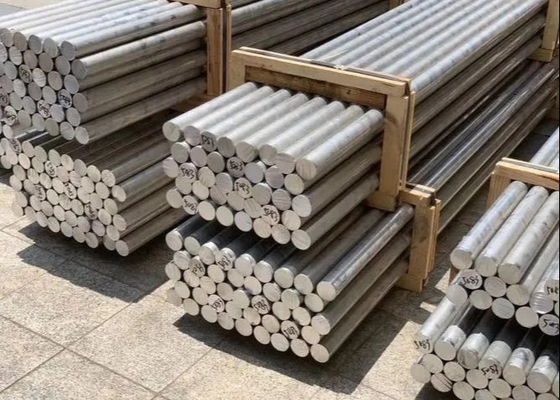

Hot Forged Casting Extruded Round Solid Aluminum Bar Alloy 3003 3A21 Smooth Aluminum Bar Rod For Construction



Product Description:

3000 series aluminum rod on behalf of 3003, 3A21. Our country 3000 series aluminum rod production technology is relatively excellent. 3000 series aluminum bars are made of manganese. Content between 1.0-1.5, is a good rust - proof series.



Item Aluminum Bar
Standard GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Material 2A12 2A11 2017 2024 2A14 3003 3A21 5052 5083 5A05 5A06 6061 6063 6082 7075 7A04 7A09
Size Length 2000mm,2440mm,6000mm,or as required.
Quality control Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc


Chemical Composition:



Alloy Chemical Composition
Si Fe Cu Mn Mg Cr Ni Zn   Ti Zr Other Al
Single Total
3A21 0.6 0.7 0.2 1.0~1.6 0.05 0.10④ 0.15 0.05 0.1 Rem
3003 0.6 0.7 0.05~0.20 1.0~1.5 0.1 0.05 0.15 Rem
3103 0.5 0.7 0.1 0.9~1.5 0.3 0.1 0.2 Ti+Zr:0.10 0.05 0.15 Rem
3004 0.3 0.7 0.25 1.0~1.5 0.8~1.3 0.25 0.05 0.15 Rem
3005 0.6 0.7 0.3 1.0~1.5 0.20~0.6 0.1 0.25 0.1 0.05 0.15 Rem
3105 0.6 0.7 0.3 0.30~0.8 0.20~0.8 0.2 0.4 0.1 0.05 0.15 Rem





Mechanical Property:



ALUMINUM
ALLOY
Grade Normal
Temper
Temper Tensile Strength
N/mm²
Yield Strength
N/mm²
Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)
2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)
3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)
5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)
6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)
7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150



Product Details:

Metric Solid Aluminum Bar Alloy 3003 3A21 Hot Forged Casting Extruded Alu 6063 Bar 0



Product Application:



Metric Solid Aluminum Bar Alloy 3003 3A21 Hot Forged Casting Extruded Alu 6063 Bar 1



Certification:



Metric Solid Aluminum Bar Alloy 3003 3A21 Hot Forged Casting Extruded Alu 6063 Bar 2





Packaging & Shipping:



Metric Solid Aluminum Bar Alloy 3003 3A21 Hot Forged Casting Extruded Alu 6063 Bar 3

Metric Solid Aluminum Bar Alloy 3003 3A21 Hot Forged Casting Extruded Alu 6063 Bar 4
