Aluminum Alloy Tube
Created with Pixso. Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024

Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024

Brand Name: Sylaith
Model Number: 7075 6061 5052 5083 7050 2024
MOQ: 1 Ton
Price: Negotiable
Delivery Time: 7-14 days
Detail Information
Place of Origin:
China
Certification:
ISO 9001
Model NO.:
7075 6061 5052 5083 7050 2024
Diameter:
3mm-800mm
Length:
1000mm-6000mm Or As Your Requirements
Tolerance:
±1%
Processing Service:
Bending, Decoiling, Welding, Punching, Cutting
Application:
Conductor, Instrument Panel, Building Decoration
Surface Treatment:
Mill Finish
Standard:
ASTM AISI JIS DIN GB
Packaging Details:
Standard seaworthy package
Supply Ability:
50000 Ton Per Year
Highlight:

anodized aluminum bar

,

Solid aluminum bar welding 7075

,

Solid aluminum bar welding 6061

Product Description

Alloy 7075 6061 5052 5083 7050 2024 Solid Aluminum Bar Aluminium Round Alloy​



Product Description:



6061 aluminum magnesium and silicon are the main alloy elements, and formed Mg2Si phase.If contains a certain amount of manganese and chromium, can counteract the bad effect of iron;Sometimes add a small amount of copper or zinc, in order to improve the strength of the alloy, and don't make it have a significantly lower resistance to corrosion;Conductive material with a small amount of copper, in order to offset the bad influence of titanium and iron for electrical conductivity;Zirconium or titanium can refine grain and controlling recrystallization organization;In order to improve cutting performance, can be added to the lead and bismuth.



Item Alloy 7075 6061 5052 5083 7050 2024 Solid Aluminum Bar Aluminium Round Alloy
Standard ASTM,JIS,SUS,DIN,GB,EN,etc.
Material

1060,1050,1100,2024,2124,3003,3004,4A01,5050,5083,

5154,5454,5652,5086,5056,5754,6061,6062,6063,7075,etc.

Size

Diameter:3mm-800mm

Length:1000mm-6000mm or as your requirements

Application

1) Kitchenware, food and chemical products processing and storage devices;

2) Aircraft fuel tanks, oil pipe, rivets, wire;

3) Cans cover, car body panels, steering plates, stiffeners, brackets and

other components;

4) Manufacturing trucks, tower building, ship, train, furniture, machinery parts,

precision machining with the tubes, rods, shaped, sheet metal.

Package

Standard export package,suit for all kinds of transportation,

or as customer's requirement.

Certificates TUV&ISO&GL&BV&DNV&TUV



Chemical Composition:



Alloy Si Fe Cu Mn Mg Cr Zn Ti Other Al
Single Total
5052 0.25 0.4 0.1 0.1 2.2~2.8 0.15~0.35 0.1 0.05 0.15 Rem
5083 0.4 0.4 0.1 0.40~1.0 4.0~4.9 0.05~0.25 0.25 0.15 0.05 0.15 Rem
6061 0.40~0.8 0.7 0.15~0.40 0.15 0.8~1.2 0.04~0.35 0.25 0.15 0.05 0.15 Rem
7050 0.12 0.15 2.0~2.6 0.1 1.9~2.6 0.04 5.7~6.7 0.06 0.05 0.15 Rem
7075 0.4 0.5 1.2~2.0 0.3 2.1~2.9 0.18~0.28 5.1~6.1 0.2 0.05 0.15 Rem
2024 0.5 0.5 3.8~4.9 0.30~0.9 1.2~1.8 0.1 0.25 0.15 0.05 0.15 Rem



Alloy Temper Tensile Strength
(25°C MPa)
Yield Strength
(25°C MPa)
Hardness Elongation
1.6mm(1/16in)
5052 H112 175 195 60 12
5083 H112 180 211 65 14
6061 T651 310 276 95 12
7050 T7451 510 455 135 10
7075 T651 572 503 150 11
2024 T351 470 325 120 20


Product Details:

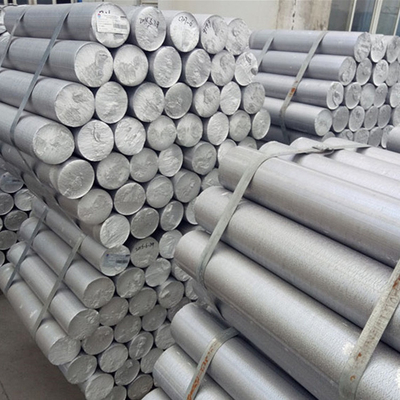

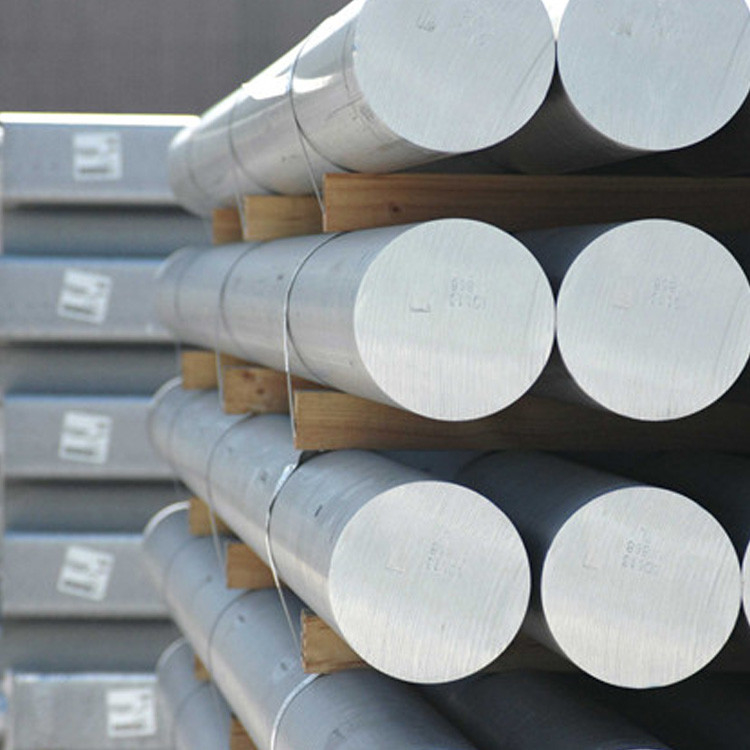

Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024 0



Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024 1



Product Application:



Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024 2



Certification:



Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024 3





Packaging & Shipping:

Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024 4

Anodized Solid Aluminum Bar Welding 7075 6061 5052 5083 7050 2024 5



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
